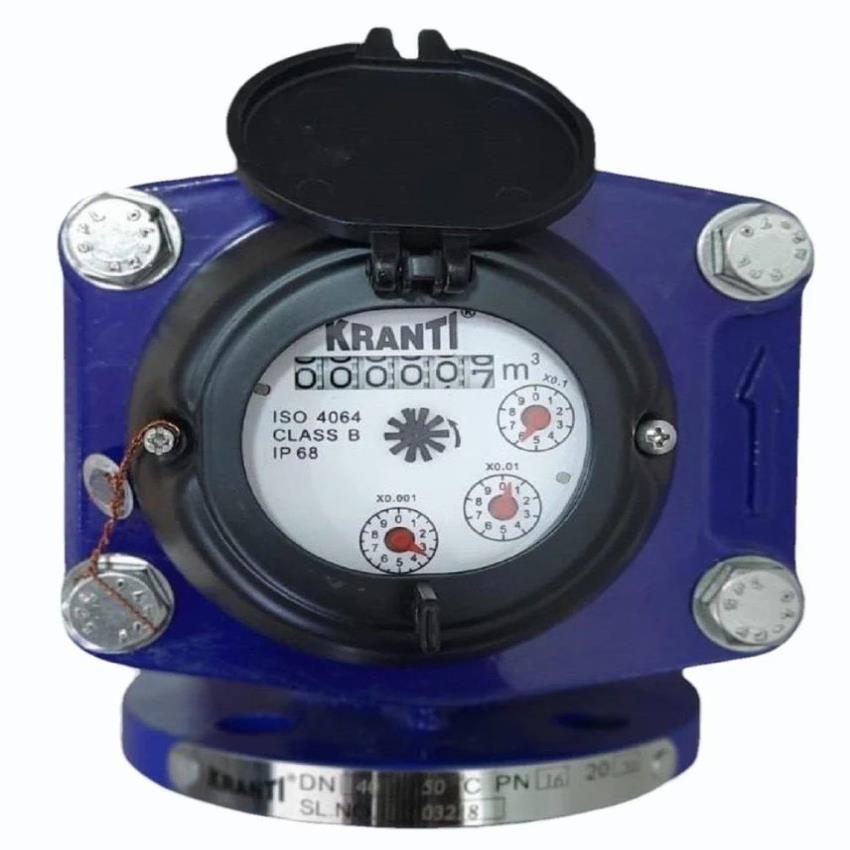

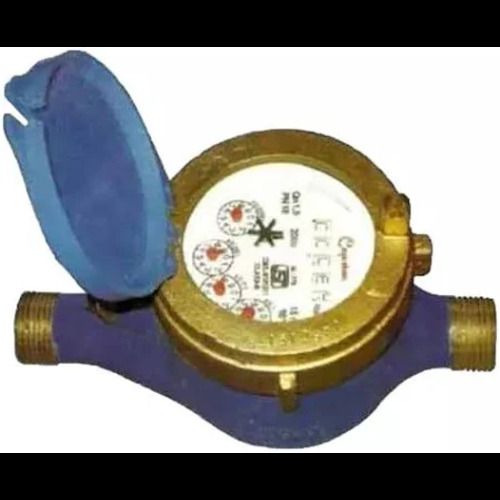

Industrial Water Meter

Name: Industrial Water Meter
Brand: VISHWAKARMA WATER METER SALES AND SARVIL
Price: 6576.0 INR
Availability: InStock

Price 6576.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Industrial Water Meter Specification

Protection
IP68 (waterproof, outdoor installation ready)

Connectivity Type
Option for Pulse Output or M-Bus (optional)

Sensor Type
Rotary/Vane Type (Mechanical)

Pressure Range
Up to 16 bar

Humidity %
0-100% RH (Non-condensing)

Diameter
50 mm to 300 mm (2 to 12)

Application Media
Water

Equipment Type
Industrial Water Meter

Resolution
0.0001 m3

Flow Rate
Up to 1000 m3/h

Temperature Range
0C to 50C

Capacity
High Flow Capacity (as per diameter)

Measurement Range
0.05 m3/h - 1000 m3/h (by variant)

Material
Cast Iron Body with Brass/SS Internals

Power Supply
Mechanical, does not require external power

Power Consumption
Zero (mechanical operation)

Accuracy
2% (within specified flow range)

Display Type
Analog Mechanical Dial

Range
0.1 - 1000 m3/h (varies by model)

Operating Direction
Unidirectional

Counter Type
Straight Reading or Cyclometer Type

Maintenance
Low, Simple Mechanical Parts

Reading Units
Cubic Meters (m3)

Flange Standard
PN16 DIN/BS Compatible

Sealing Method
Tamper-Evident Lead Seal

Maximum Permissible Error
2% (Q2 Q Q4)

Suitable Liquids
Cold Potable Water

Life Expectancy
10-15 years (with proper installation and water quality)

Mounting Type
Horizontal (preferred), Vertical (allowed with reduced performance)

Industrial Water Meter Trade Information

Minimum Order Quantity
1 Piece

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Pieces Per Week

Delivery Time
2 Days

Sample Available
No

Packaging Details
STANDARD

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America

Main Domestic Market
All India

About Industrial Water Meter

Industrial water meters (also called flow meters) are used to measure the flow rate and total consumption of water in industries like manufacturing, water treatment, HVAC, and chemical plants. They are designed for high accuracy, durability, and large pipe sizes, unlike domestic meters.

Exceptional Accuracy and Reliability

This water meter maintains a maximum permissible error of just 2%, ensuring precise measurement across a wide flow range. The device operates efficiently in environments with temperatures from 0C to 50C and pressures up to 16 bar, making it well-suited for Indian industrial applications. Its unidirectional operation and tamper-evident sealing enhance security while the sturdy construction guarantees reliable performance even under harsh outdoor conditions.

Installation and Maintenance Benefits

Designed primarily for horizontal mounting but allowing vertical installation with a minor performance reduction, the meter features DIN/BS PN16 flanges for easy integration into diverse pipeline systems. Its IP68 rating ensures waterproof performance, making it ideal for outdoor installations. With straightforward mechanical parts, the water meter requires minimal maintenance, and installation can be performed by trained technicians, ensuring a long operational life with low upkeep costs.

FAQ's of Industrial Water Meter:

Q: How is this industrial water meter installed and what mounting options are available?

A: The water meter is intended for horizontal mounting, which ensures optimal accuracy and performance. Vertical mounting is also possible, but may result in slightly reduced accuracy and flow reading. Its DIN/BS PN16-compatible flange allows for easy and secure pipeline integration.

Q: What type of water and conditions is the meter suitable for?

A: This meter is designed for measuring cold potable water and is ideal for industrial, municipal, and commercial applications. It operates effectively in temperatures from 0C to 50C and 0-100% non-condensing humidity.

Q: What are the advantages of the mechanical design and power supply?

A: The strictly mechanical rotary/vane sensing system ensures dependable operation without any external power supply, resulting in zero power consumption. This design contributes to low maintenance requirements and high reliability, even in settings with frequent power interruptions.

Q: Where can the meter be installed and is it suitable for outdoor use?

A: With an IP68 waterproof rating and robust cast iron construction, the meter is suitable for outdoor environments, including underground pits and exposed installations. It is protected against dust, water ingress, and harsh weather, making it suitable for industrial and municipal settings in India.

Q: How accurate is this water meter and what is its measurement principle?

A: The meter achieves a maximum permissible error of 2% within the specified flow range (Q2 Q Q4). It uses a rotary or vane-type mechanical sensor, providing straight or cyclometer-type readings in cubic meters for precise, reliable metering across large industrial flows.

Q: What options are available for remote reading and integration with digital systems?

A: The meter offers optional connectivity for pulse output or M-Bus, enabling integration with remote monitoring systems, data loggers, or building management platforms. This allows real-time consumption tracking and easier maintenance scheduling.

Q: What is the expected lifespan of the meter and how does water quality affect it?

A: With proper installation and reasonable water quality, this industrial water meter has a life expectancy of 10-15 years. Routine inspections and clean, sediment-free water help maintain its accuracy and extend service life.
