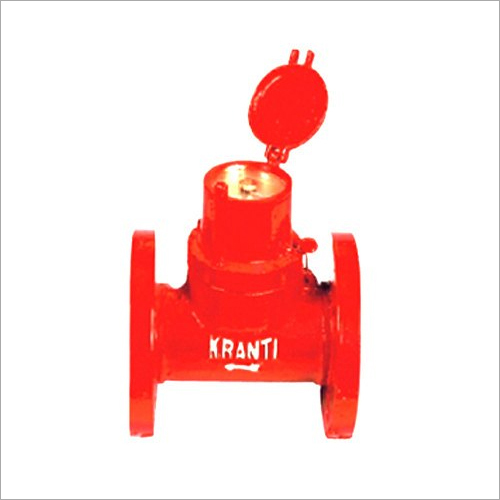

CI Body Hot Water Meter

Name: CI Body Hot Water Meter
Brand: VISHWAKARMA WATER METER SALES AND SARVIL
Price: 9000.0 INR
Availability: InStock

Price 9000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CI Body Hot Water Meter Specification

Capacity
Varies with size (upto 120 m3/h)

Protection
Weatherproof, IP68 register (on request)

Resolution
As per dial (typically 0.0001 m3 for 15mm size)

Flow Rate
As per meter size; up to 120 m3/h

Measurement Range
Min flow 0.03 m3/h - Max flow 120 m3/h (depending on size)

Diameter
15mm, 20mm, 25mm, 40mm, 50mm, 80mm, 100mm

Temperature Range
Up to 90C

Equipment Type
Hot Water Meter

Application Media
Hot Water

Connectivity Type
Pulse Output (optional)

Pressure Range
Maximum working 16 bar

Humidity %
Up to 100% (Condensing, for register)

Sensor Type
Turbine (Mechanical)

Material
Cast Iron Body

Power Supply
Not required (Mechanical)

Power Consumption
Nil

Accuracy
Class B (2% - 5%) as per IS Standard

Display Type
Analogue (Counter Register)

Range
15mm to 100mm

Non-Return Valve
Available on request

Mounting Position
Horizontal (standard); vertical on request

Reading Unit
Cubic Meters (m3)

Surface Treatment
Epoxy powder coated

End Connection
Flanged (as per IS/BS standards)

Hot Water Temperature Class
Class 90C

Conformity Standard
IS 2373/ISO 4064

Pressure Loss
<0.025 MPa at maximum flow

Dial Protection
Copper/Glass airtight register

About CI Body Hot Water Meter

Featured as a trending solution in water metering, the CI Body Hot Water Meter offers monumental reliability and superb precision. Conforming to IS 2373/ISO 4064 standards, this astonishing device operates mechanically-requiring no external power-with accuracy in Class B (2%-5%). Its epoxy-coated cast iron construct ensures weatherproof durability, while a copper/glass airtight register and optional IP68 protection elevate its ruggedness. Flexible mounting, both horizontal and vertical, flanged connections, and multiple diameters-ranging from 15mm to 100mm-make it an ideal choice for varied hot water applications, both industrial and domestic.

Versatile Applications & Feature-Rich Design

The CI Body Hot Water Meter is perfectly suited for residential buildings, commercial complexes, hotels, and industrial plants where reliable hot water monitoring is essential. This superb machine offers horizontal mounting as standard and vertical on request, enhanced with a non-return valve (optional). Its mechanical turbine sensor boasts an analogue counter display, offering rapid and precise readings in cubic meters. The robust epoxy-coated cast iron body assures lasting performance even under high-pressure and extreme weather conditions.

Market Reach, Sample Policy & Export Excellence

Our CI Body Hot Water Meter is supplied across India, with primary domestic markets in urban and industrial centers. Samples are available for inspection prior to bulk ordering, ensuring customer confidence before dispatching. This product is also shipped to key export markets, maintaining timely and reliable deliveries. Goods are dispatched with care, aligning with international quality expectations for performance and longevity, establishing our reputation amongst global buyers and traders.

FAQ's of CI Body Hot Water Meter:

Q: How does the CI Body Hot Water Meter ensure accurate measurement of hot water usage?

A: The meter utilizes a mechanical turbine sensor with an analogue register, providing Class B (2%-5%) accuracy as per IS standards, ensuring each cubic meter of hot water is measured precisely.

Q: What installation options are available for the CI Body Hot Water Meter?

A: This meter can be mounted horizontally as a standard or vertically upon request and comes with flanged end connections according to IS/BS standards, accommodating various infrastructure needs.

Q: When is a non-return valve recommended, and how can it be requested?

A: A non-return valve is recommended for preventing backflow and can be supplied upon request at the time of order placement, providing an additional layer of operational safety.

Q: Where is this hot water meter commonly used?

A: It is extensively used in residential complexes, commercial buildings, hotels, and industrial facilities that require precise hot water measurement and monitoring.

Q: What are the key benefits of the weatherproof and epoxy-coated cast iron body?

A: The weatherproof and epoxy powder coating protects the meter from corrosion and harsh environmental conditions, ensuring monumental durability and reliable service over an extended period.

Q: How is the meter shipped to global and domestic customers?

A: The meters are carefully packed and dispatched to both domestic and international customers, adhering to stringent shipping standards for prompt and safe delivery.
