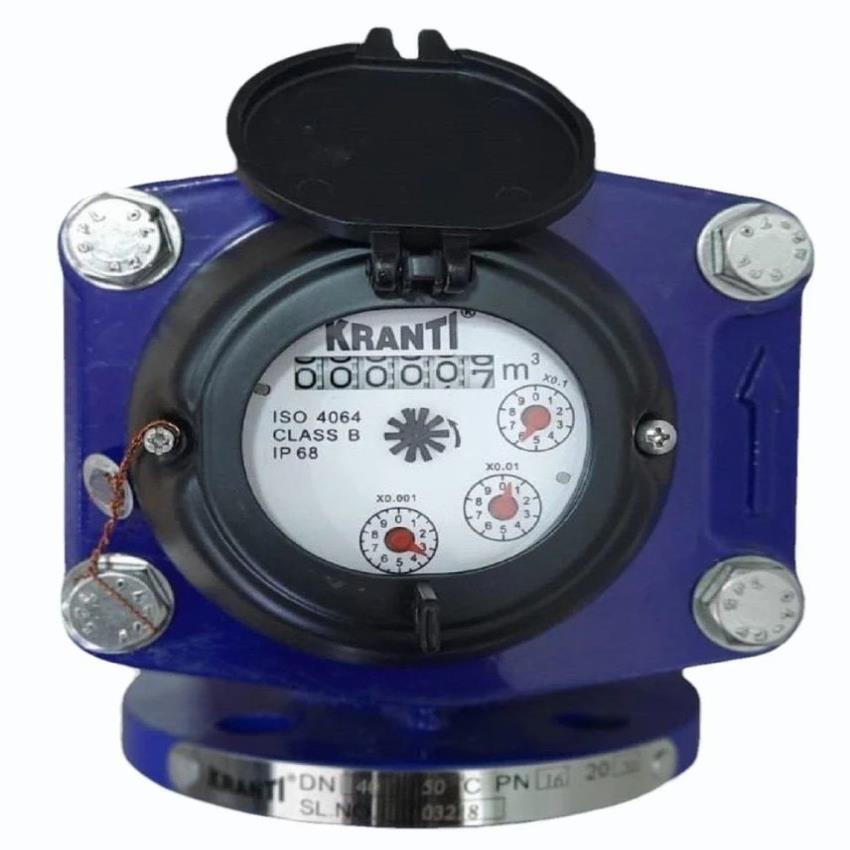

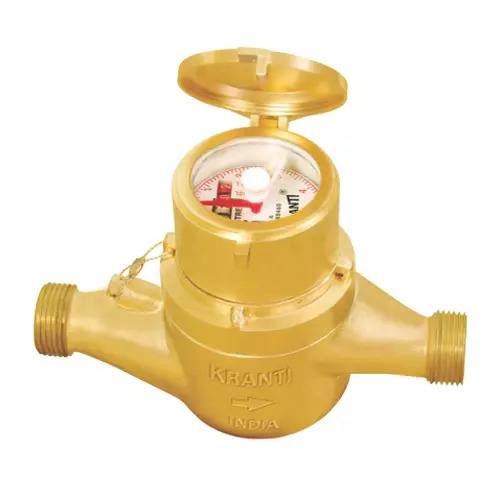

Kranti Domestic Water Meter Class B Magnetic

About Kranti Domestic Water Meter Class B Magnetic

Kranti Domestic Water Meter Class B Magnetic Short Contains

Kranti Domestic Water Meter Class B Magnetic typically contains the following components

Brass body housing
Corrosion resistant brass body suitable for domestic water supply

Internal measuring element
Impeller or multi jet rotor that rotates with water flow to measure volume

Magnetic coupling mechanism
Magnetic drive transfers motion from the internal rotor to the external register without direct contact

Dry sealed register
Sealed dial display showing water consumption in cubic meters prevents moisture and fogging

Threaded end connections
Screwed ends for easy installation in pipelines usually BSP threads

Seals and gaskets
Rubber or elastomer seals to prevent leakage

Pressure and temperature capability
Suitable for potable water with working pressure up to 16 bar and temperature up to 50 degree Celsius

Accuracy and standards
Class B accuracy as per IS 779 and ISO 4064 standards

Application
Used for domestic water measurement in residential buildings
