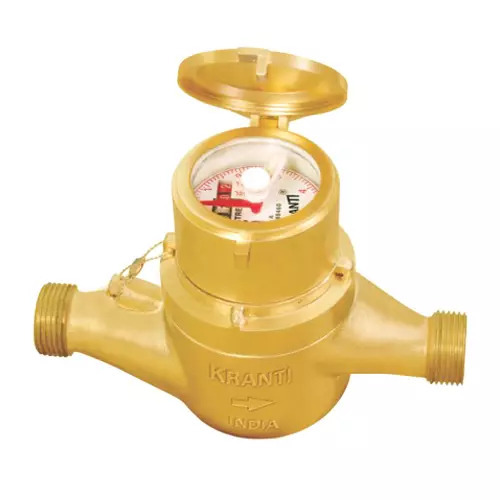

Kranti Make Water Meter

Name: Kranti Make Water Meter
Brand: VISHWAKARMA WATER METER SALES AND SARVIL
Price: 7501.0 INR
Availability: InStock

Price 7501.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Kranti Make Water Meter Specification

Connector
Threaded (small size) / Flanged (large size)

Cut Size
As per Nominal Diameter

Response Time
Immediate mechanical response

Sensor Type
Mechanical / Rotary / Multijet Wheel

Load Capacity
Depends on Flow Rate & Size

Connecting Type
Threaded/Flanged Ends

Process Connection
Threaded/Flanged

Signal Type
Not Applicable / Pulse (optional)

Humidity %
0 - 100% RH (Protected Register)

Model
Domestic/Industrial Series (as per Order)

Output
Pulse Output available (on request/depends on model)

Measuring Units
Cubic Meter (m3) / Liter

Stability
Highly Stable (Mechanical Components)

Axis Type
Horizontal / Vertical

Application Media
Cold Potable Water

Storage Temperature
-5C to 55C

Temperature Range
Up to 45C

Diameter
15mm (1/2 inch), 20mm (3/4 inch), 25mm (1 inch) and up to 300mm

Operating Temperature
Up to 45C (for cold water meters)

Input
Water Flow

Length
As per IS 779 / ISO 4064 standard

Language
English Marking

Measurement Range
0.02 m3/h to maximum capacity (varies by model & size)

Protection
IP68 (Register Water-proof, as per Availability)

Flow Rate
15mm - up to 3 m3/h (varies by model)

Housing Material
Cast Iron / Brass / ABS Plastic

Capacity
As per Meter Size (up to 300mm)

Mounting
Horizontal / Vertical (as per Model)

Pressure Range
Up to 16 bar

Equipment Type
Woltman / Velocity / Multijet Water Meter

Dimension (L*W*H)
Varies by Size (e.g., 240mm x 110mm x 125mm for 25mm size)

Sensitivity
Starts at Flow 0.1 LPH

Velocity Range
0.03 m/s to 3 m/s

Resolution
0.0001 m3 (minimum reading)

Connectivity Type
Manual Reading / Optional Pulse

Color
Blue / Golden Finish (as per Model)

Material
Body: Cast Iron / Brass / ABS Plastic (as per Model)

Power Supply
Not Required (Mechanical Type)

Power Consumption
0 (Manual/Mechanical Operation)

Accuracy
Class B (2% from Qn to Qmin as per IS standards)

Display Type
Analog Dial (Cyclometric/Register Type)

Range
0.1 LPH to Maximum Flow Range depending on Model

Pressure Loss
0.1 MPa at Qmax

Cyclic Register
Available

Sealing
Tamperproof Seal with Lead Cap

Electronics
None (Fully Mechanical)

Installation Position
Horizontal Standard (Vertical available on request)

Number of Dials
5 / 6 Number

Test Pressure
20 bar

Direction of Flow
Unidirectional / Available for bidirectional

Kranti Make Water Meter About

Find the acclaimed Kranti Make Water Meter, recognized for its precision and reliability. Perfect for domestic, industrial, or plant-scale water measurement, this meter offers reduced pressure loss, decorated with tamperproof lead seals for enhanced security. Its radiant display ensures easy manual readings, while the robust housing-cast iron, brass, or ABS plastic-guarantees longevity. With versatile installation options and highly stable mechanics, this water meter stands as a preferred solution for accurate monitoring across myriad applications, making it the ideal choice for trusted water flow management.

Versatile Usage Across Sectors

Kranti Make Water Meter is suitable for use in domestic households, commercial complexes, and a wide range of plant applications requiring precise water flow measurement. Commonly used by builders, facility managers, and utility service providers, it delivers consistent performance even in demanding industrial environments. The meter is perfect for water supply authorities and is favored by traders and suppliers who seek reliability and high accuracy readings for cold potable water distribution.

Payment and Delivery Information

Payments for Kranti Make Water Meter orders are accepted via secure terms, providing buyers flexibility and convenience. Products are carefully packaged to prevent in-transit damage and dispatched from the designated FOB port. Shipping arrangements ensure prompt freight movement, and each water meter is dispatched with strong packaging, aligning with high industry standards. Buyers benefit from reliable dispatching protocols, ensuring seamless delivery and optimal product handling right up to the point of receipt.

FAQ's of Kranti Make Water Meter:

Q: How does the Kranti Make Water Meter ensure tamperproof operation?

A: The meter is equipped with a tamperproof seal featuring a secured lead cap, which helps prevent unauthorized access and ensures reliable, authenticated readings.

Q: What installation positions are available for this water meter?

A: Standard models are supplied for horizontal installation, but vertical mounting is available upon request, catering to diverse application needs.

Q: When is the mechanical model preferable to an electronic one?

A: The fully mechanical design eliminates the need for power supply, making it ideal for locations where electricity is unavailable or when low maintenance is desired.

Q: Where can the Kranti Make Water Meter be applied?

A: It is suitable for domestic, commercial, and plant water systems, and is widely used by service providers, suppliers, and traders for cold potable water metering.

Q: What are the primary benefits of using this water meter?

A: Key benefits include reduced pressure loss, highly stable mechanical performance, IP68 waterproof protection (where available), and a robust construction ensuring precise long-term measurement.

Q: How is the reading and maintenance process handled?

A: Readings are obtained manually via an analog dial, with optional pulse outputs for automated monitoring. Maintenance is simplified due to its durable build and absence of electronic components.
