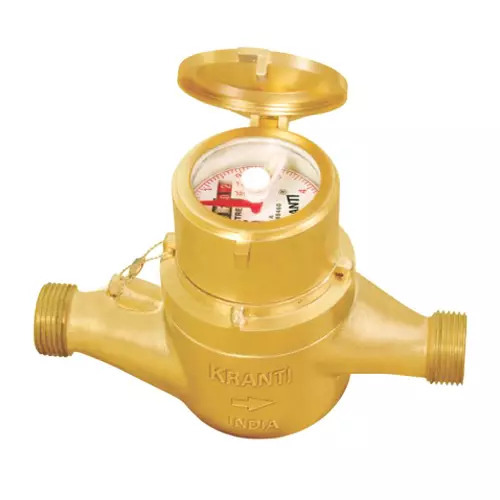

Domestic Water Meter

Name: Domestic Water Meter
Brand: VISHWAKARMA WATER METER SALES AND SARVIL
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Domestic Water Meter Specification

Mounting
Horizontal / Vertical

Output
Counter View Only (No Electrical Output)

Connector
Brass Thread

Signal Type
Mechanical

Language
English Dial Markings

Housing Material
Brass

Diameter
15 mm / 20 mm / 25 mm

Process Connection
G 1/2, G 3/4, G 1

Measuring Units
Cubic Meter (m3)

Color
Blue / Brass Golden

Length
110 mm, 130 mm, 165 mm (varies by diameter)

Protection
IP68 (Waterproof Design)

Cut Size
DN15 / DN20 / DN25

Sensor Type
Impeller Type

Resolution
0.0001 m3 minimum

Storage Temperature
-10C to 50C

Model
Domestic Water Meter

Connecting Type
Threaded End Connection

Stability
High (Long-Term Measurement)

Response Time
Instant on Water Flow

Load Capacity
Water Flow Rated to Standard

Flow Rate
0.03 - 3.0 m3/h (typical for DN15)

Operating Temperature
0C to 50C

Dimension (L*W*H)
Standard (Approx. 165 x 90 x 130 mm)

Application Media
Cold Potable Water

Measurement Range
0.02 - 10 m3/h

Capacity
Conforms to IS 779: 1994 & ISO 4064

Material
Brass Body with Polycarbonate Cover

Power Supply
Not Required (Mechanical Type)

Power Consumption
Nil

Accuracy
Class B as per IS779

Display Type
Analog (Mechanical Dial)

Range
0.02~10 m3/h (Depending on Model)

Equipment Type
Single Jet / Multi Jet Water Meter

Installation Location
Indoors / Outdoors (Weather Resistant)

Dial
Rotatable, Vacuum Sealed for Protection

Reading
Direct Reading in m3 and Liters

Maximum Pressure
1.6 MPa

Tamper Proof
Tamper Evident Seal Facility

Domestic Water Meter About

Discover the superlative Domestic Water Meter-your special solution for accurate water measurement at a genuine bargain! This exceptional meter features robust single jet or multi jet options, a rotatable, vacuum-sealed dial for superior protection, and a direct reading system in both m3 and liters. Buy online with confidence: its weather-resistant, tamper-evident, and mechanical build ensures stable, long-term performance indoors or outdoors. Enjoy an excellent IP68 waterproof design, class B accuracy, and a brass-polycarbonate build. Truly a premier choice for reliable, maintenance-free water monitoring.

Versatile Application for Reliable Consumption Monitoring

Ideal for both residential and commercial settings, this Domestic Water Meter excels indoors or outdoors-thanks to its weather-resistant, IP68-rated build. Its primary application media is cold potable water, making it perfect for homes, apartments, offices, and small industries. The meter adapts seamlessly via threaded end connections and supports both horizontal and vertical mounting, ensuring accurate measurements at every site of application where precise water monitoring is essential.

Delivery Time, Sample Policy, and Payment Terms Details

Our Domestic Water Meter is shipped swiftly after order confirmation, typically within standard industry delivery times. If you require product samples, please enquire-sample policies vary and are subject to availability. The list price and rate depend on the selected model and order volume. Flexible payment terms are offered to suit a range of buyers, making it easy and convenient to acquire this reliable water meter for your property.

FAQ's of Domestic Water Meter:

Q: How do I install the Domestic Water Meter for optimal performance?

A: Install the meter horizontally or vertically using the threaded end connections appropriate for your pipe size. Ensure it's placed at a suitable indoor or outdoor location-thanks to its weather-resistant design- and confirm the arrow on the meter aligns with the water flow direction.

Q: What site applications are best suited for this water meter?

A: This meter is perfect for residential homes, apartment buildings, offices, and small industries needing reliable cold potable water monitoring. Its robust design allows indoor or outdoor use- especially areas requiring durability and precision.

Q: When can I expect my water meter to be shipped after purchase?

A: Typically, your water meter will be shipped promptly once your order is confirmed. Delivery times may vary depending on stock availability and location, but most shipments adhere to standard industry timelines.

Q: How does the tamper-evident seal facility benefit users?

A: The tamper-evident seal enhances security by making unauthorized access immediately visible. This ensures the integrity of the meter's readings, protecting customers and suppliers from potential misuse or manipulation.

Q: What are the advantages of the meter's mechanical analog design?

A: The mechanical analog dial requires no electrical power, ensuring instant response to water flow and long-term, maintenance-free operation. Its design delivers durability, reliability, and simple direct reading of water usage in both m3 and liters.
