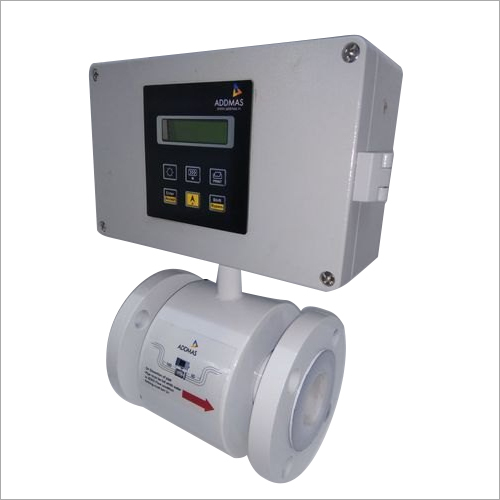

Electromagnetic Flow Meter

Name: Electromagnetic Flow Meter
Brand: VISHWAKARMA WATER METER SALES AND SARVIL
Price: 26000.0 INR
Availability: InStock

Price 26000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Electromagnetic Flow Meter Specification

Current Range
4-20 mA

Connecting Type
Flanged / Threaded

Velocity Range
0.3 to 10 m/s

Model
EMFM-600

Length
As per pipeline size

Pressure Range
Up to 1.6 MPa

Resolution
0.01 m3/h

Connectivity Type
Wired

Housing Material
Powder coated steel / Stainless steel

Measurement Range
0.3~10 m/s (flow velocity)

Storage Temperature
-25C to +80C

Equipment Type
Electromagnetic Flow Meter

Dimension (L*W*H)
Depends on model / diameter

Load Capacity
Up to 1000 m3/hr

Protection
IP65 / IP68

Stability
0.1% of span

Operating Temperature
-10C to +70C

Frequency
50/60 Hz

Capacity
Up to 10,000 m3/h

Color
Blue / White

Mounting
Flange / Threaded

Input
24VDC, 230VAC

Sensor Type
Electromagnetic

Application Media
Conductive liquids

Flow Rate
0.5 m3/h to 10,000 m3/h

Response Time
< 1 s

Language
English

Signal Type
Analog/Pulse/Digital

Diameter
DN10 to DN600

Humidity %
95% RH (non-condensing)

Connector
Cable gland

Process Connection
Flanged as per ANSI/DIN/BS

Temperature Range
-10C to +70C

Measuring Units
m3/h, L/h, L/min

Output
4-20 mA, Pulse, RS485 (Modbus)

Sensitivity
High sensitivity (for low flow detection)

Material
Stainless Steel / Carbon Steel with epoxy coating

Power Supply
230 VAC, 50 Hz / 24 VDC

Power Consumption
< 15 VA

Accuracy
0.5% of reading

Display Type
LCD Digital (Backlit)

Range
0.5 m3/h to 10,000 m3/h

Enclosure Type
Compact / Remote

Reverse Flow Measurement
Supported

Electrode Material
Stainless Steel / Hastelloy / Titanium / Tantalum / Platinum

Electronics Housing Protection
Corrosion proof, weather proof

Cable Entry
2 x M20 x 1.5

Empty Pipe Detection
Yes

Weight
Depends on diameter (approx. 7 kg for DN50)

Compliance
CE, ISO 9001 Certified

Installation
Inline / Remote sensor

Self-Diagnostic Function
Yes

Data Logging
Optional (on request)

Power Failure Alarm
Available

Liner Material
PTFE / Hard Rubber / Neoprene / Polyurethane

Display Information
Flow rate, totalizer, alarm status

Cable Length (Remote Option)
Up to 20 meters

Grounding Rings Option
Available

Electromagnetic Flow Meter About

Unlock the ultimate precision in fluid measurement with the EMFM-600 Electromagnetic Flow Meter. Engineered with sterling materials including Stainless Steel, Hastelloy, Titanium, Tantalum, and Platinum electrodes, and an ineffable selection of advanced liners, this meter delivers robust corrosion resistance. Featuring compact or remote enclosures, intuitive LCD display, and seamless connectivity, the EMFM-600 elevates operational efficiency with high-accuracy flow detection, self-diagnostics, reverse flow measurement, and comprehensive alarm systems. Compliance with CE and ISO 9001 ensures reliability, while versatile installation options promote a broad array of industrial applications.

Specific Usage & Applications of EMFM-600 Electromagnetic Flow Meter

The EMFM-600 Electromagnetic Flow Meter is ideal for precise measurement of conductive liquids in water treatment plants, wastewater management facilities, chemical industries, and food processing units. Designed for inline or remote installations, it's optimal for continuous flow monitoring and high-capacity operations where exceptional accuracy and reliability are vital. Select from a variety of electrode and liner materials to best suit corrosive or abrasive applications, ensuring ineffable durability and performance in every scenario.

Delivery Time, Supply Ability & Logistics Rate for Electromagnetic Flow Meter

Our offer on the EMFM-600 Electromagnetic Flow Meter ensures prompt delivery, with standard lead times depending on model and quantity. Supply ability extends to a robust monthly rate, supporting bulk industrial demands. With flexible FOB port options, we streamline logistics and handle shipping with sterling efficiency. Clients receive comprehensive support, from order placement through final delivery, making our service reliable and responsive for all project scales.

FAQ's of Electromagnetic Flow Meter:

Q: How does the EMFM-600 Electromagnetic Flow Meter ensure high measurement accuracy?

A: The EMFM-600 employs advanced electromagnetic sensor technology and self-diagnostic functions, paired with high sensitivity, to achieve a stability of 0.1% of span and an accuracy of 0.5% of reading, ensuring unparalleled precision in fluid flow measurement.

Q: What types of applications are suitable for the EMFM-600?

A: This flow meter is specifically engineered for conductive liquid applications, including water treatment, chemical industries, wastewater management, and food processing plants, where reliable and continuous flow monitoring is crucial.

Q: When should I select different electrode or liner materials for my application?

A: Choose electrode and liner materials based on the chemical composition and abrasiveness of your fluid. For instance, Hastelloy or Titanium is best for corrosive media, while PTFE liners are suited to aggressive chemicals.

Q: Where is the EMFM-600 typically installed in process plants?

A: It can be installed either inline or as a remote sensor, depending on pipeline design and space requirements. Its flexible mounting options accommodate most industrial pipeline configurations.

Q: What process advantages does the EMFM-600 offer over traditional flow meters?

A: Unlike mechanical meters, the EMFM-600 supports reverse flow measurement, empty pipe detection, and has integrated power failure alarms. Its non-intrusive electromagnetic sensing results in minimal maintenance and reduced pressure loss.

Q: How can I benefit from the self-diagnostic and empty pipe detection features?

A: Self-diagnostic and empty pipe detection functions enable early problem identification, minimizing downtime and reducing maintenance costs, thereby optimizing overall process efficiency.
