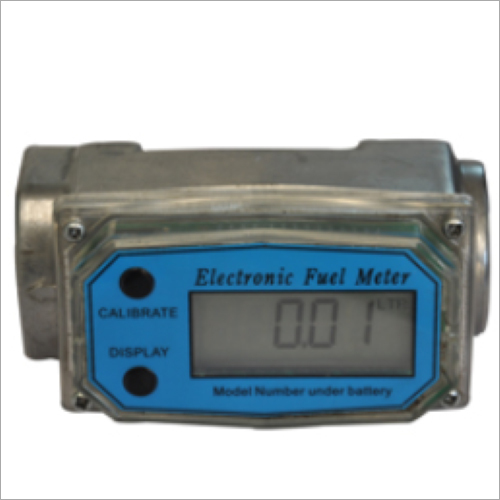

Digital Oil Flow Meter

Name: Digital Oil Flow Meter
Brand: VISHWAKARMA WATER METER SALES AND SARVIL
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Digital Oil Flow Meter Specification

Length
145 mm

Color
Silver/Blue

Stability
0.2%

Model
Digital Oil Flow Meter

Operating Temperature
-10C to 60C

Connecting Type
Threaded (BSP/NPT)

Dimension (L*W*H)
145 x 63 x 90 mm

Response Time
< 0.5 sec

Protection
IP65

Flow Rate
1-30 L/min

Mounting
Inline, Threaded

Signal Type
Electronic Pulse

Storage Temperature
-20C to 70C

Load Capacity
Up to 120 bar

Housing Material
Aluminum Alloy

Process Connection
Threaded

Measuring Units
Liters, Gallons, Quarts, Pints

Language
English

Cut Size
1 inch

Measurement Range
1-9999.9 Liters

Application Media
Oil, Diesel, Fuel, Kerosene

Output
Digital Indication

Diameter
1 inch (25 mm)

Material
Aluminum Alloy

Power Supply
2 x AAA 1.5V Batteries

Power Consumption
< 3 mW

Accuracy
1.0%

Display Type
LCD Digital Display

Range
1-30 L/min

Repeatability
0.2%

Ingress Protection
Fully Sealed Electronics

Battery Life
Up to 9 months (typical use)

Weight
0.6 kg

Installation Position
Any - Horizontal or Vertical

Reset Function
Manual and Automatic Reset

Equipment Type
Oil Flow Meter

Application
Suitable for Automotive, Industrial, and Agricultural Fuel Management

Pressure Loss
<20 kPa at max flow

Calibration
Factory Calibrated, User Recalibration Possible

About Digital Oil Flow Meter

Unlock immaculate precision in your fuel management with the superb Digital Oil Flow Meter. This ace device is in demand for its advanced features and robust aluminum alloy construction. Factory calibrated for 1.0% accuracy and 0.2% repeatability, it boasts an LCD digital display, intuitive reset functions, and supports multiple measuring units. With limited stock and easy installation-horizontal or vertical-it efficiently measures oil, diesel, or kerosene couched within IP65 fully sealed electronics. Enjoy up to 9 months of battery life. Secure yours before it runs out!

Versatile Usage and Key Advantages of Digital Oil Flow Meter

The Digital Oil Flow Meter is extensively used for precise measurement of oil, diesel, and kerosene, making it an ace choice for automotive, industrial, and agricultural applications. Its main advantage lies in excellent accuracy (1.0%), user-friendly calibration, and a fully sealed, IP65-protected design. Additionally, its compatibility with various fluids and mounting options ensures superb versatility and longevity in demanding environments.

Shipping, Packaging, and Delivery Information

Goods are delivered promptly via secure shipping services through the chosen FOB port. Each unit is meticulously packaged to prevent any damage during transportation. Rest assured, your order will be handled with great care to ensure the Digital Oil Flow Meter arrives in immaculate condition. Expect efficient goods transport with delivery times tailored to ensure reliability and customer satisfaction every step of the way.

FAQ's of Digital Oil Flow Meter:

Q: How is the Digital Oil Flow Meter installed?

A: The meter is designed for effortless installation in any position-either horizontal or vertical-using its threaded (BSP/NPT) connections for inline mounting.

Q: What are the typical applications for this oil flow meter?

A: It is ideal for automotive, industrial, and agricultural environments, accurately measuring oil, diesel, kerosene, and other compatible fuels.

Q: When should recalibration be performed?

A: Although factory calibrated, recalibration can be carried out as needed to maintain peak performance, especially if used in varying fluid types or operational conditions.

Q: Where can this meter be used safely?

A: Thanks to its IP65-rated, fully sealed electronics and robust aluminum alloy housing, it can operate in challenging, dusty, or moist environments between -10C to 60C.

Q: What are the main benefits of using this flow meter?

A: Users benefit from superb measurement accuracy, low power consumption, extended battery life, user-friendly operation, and versatile compatibility with multiple installation and fluid types.
