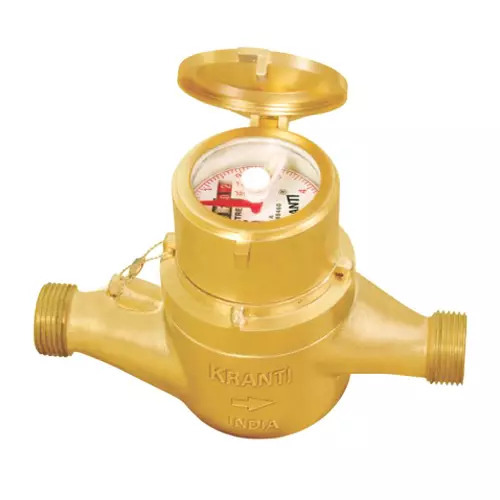

Kranti Domestic Water Meter

Product Description

The Kranti Domestic Water Meter contains the following main components and features, designed for residential water measurement (typically Class B, multi-jet type):

Components Contained in a Kranti Domestic Water Meter

1. Meter Body

   • Material: Brass (standard), sometimes cast iron or engineering plastic

   • Provides durable housing for internal components

   • Corrosion-resistant and pressure-tested

2. Measuring Mechanism (Impeller System)

   • Multi-jet impeller (turbine-type wheel)

   • Water flows through multiple ports and turns the impeller

   • Driven by water flow, responsible for measurement

3. Magnetic Drive

   • A sealed magnetic coupling connects the impeller to the dial

   • Ensures no physical contact between wet and dry sections

   • Prevents tampering and improves long-term durability

4. Dry Dial Register

   • Vacuum-sealed, fog-free glass or plastic cover

   • Contains numerical counter (litres or kilolitres)

   • May also show rotating dials for fractional readings

5. Filter Screen / Strainer

   • Located at the inlet to block debris

   • Protects the impeller from clogging or damage

6. Calibration / Adjustment Mechanism

   • Some models have internal components for flow adjustment or calibration

7. Sealing & Gaskets

   • Waterproof seals and O-rings between parts

   • Ensures the water-tight integrity of the meter

8. Inlet & Outlet Threaded Ends

   • For pipe connection (typically BSP threads for domestic models)

   • Sizes: Commonly 15 mm (), 20 mm (), 25 mm (1), etc.

9. Tamper-Proofing Elements

   • Sealing screws or lead-wire holes for legal metrology compliance

10. Optional Features (depending on model):

    • Pulse Output Module “ for data logging

    • AMR/AMI Compatibility “ for smart meter integration

    • Reverse Flow Detection “ protects against fraud

Standards & Certifications

• IS 779:1994 compliant (Indian Standard for domestic water meters)

• ISO 4064 Class B accuracy

• MID / CE marked (on export or high-end models)
